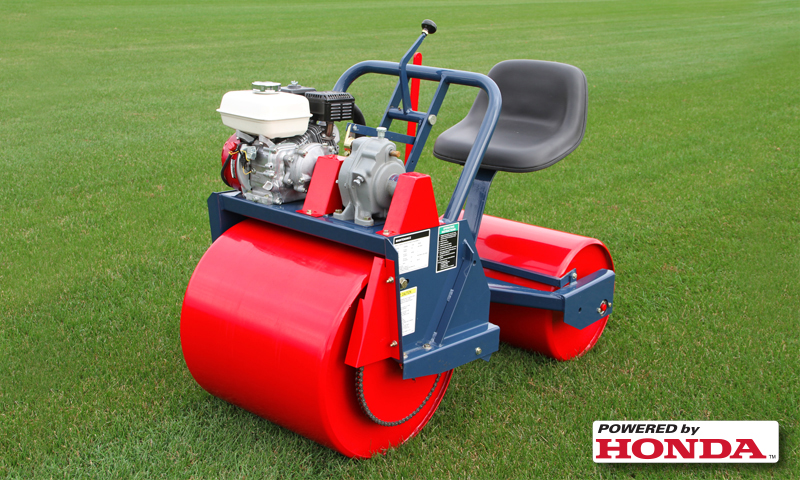

Brouwer TR 224 Ride on Turf Roller

The TR 224 turf roller from Brouwer is a gentle giant you can trust to start newly laid turf off healthy and strong. This riding
roller is easy on turf and easy on the operator, with lever-assist steering, clutchless transmission and single-lever shifting. The TR 224 from Brouwer is a reliable, economical way to set fresh turf.

Category: Turf Roller

Features

Lever assist steering for exceptional maneuverability.
Honda 5.5-hp engine for reliability and economy.
Proven single-lever F-N-R clutchless transmission.
Unique rounded-edge rollers prevent turf damage.
Two fill-drain plugs per roller for convenience.
24″ wide rollers for access to narrow paths.

SPECIFICATIONS
Length	60 1/2” (1524 mm)
Width	32” (813 mm)
Height	48 3/4” (1240 mm)
Weight	Empty 495 lbs. (224 kg) Full 960 lbs. (432 kg)
Front Roller	Diameter 24” (610 mm) Width 24” (610 mm)
Rear Roller	Diameter 18” (457 mm) Width 24” (610 mm)
Speed	0 – 4.2 mph (6.8 Km/h)
Steering	Manual
Engine	5.5 hp Honda
Drive	Clutchless Twin Planetary Transmission
